Filters and Regulators

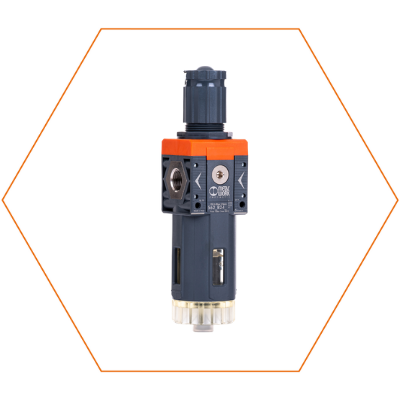

This device combines filtration, condensate separation and pressure regulation in a single unit.

• Separation of condensate and larger liquid and solid particles bycentrifugation.
• Three condensate drain options (RMSA, RA and SAC).
• 360° visually inspection of the condensate level, via transport
  spy-holes.

• Rolling diaphragm regulator, allowing maximum precision and flow
  rate, and minimal friction.

• Compensation for upstream pressure changes.
• Pressure relief valve.
• Quick downstream pressure relief.
• Padlockable push-lock knob.
• Front and rear ports for pressure gauges, pressure switches or,
  considering the high flow rate, for use as additional filtered and
  regulated air take-off.



  One unit for filtration, condensate separation and pressure regulation.
  Adjusted pressure stays constant despite pressure variations.
  360° viewing glass.
  Relief valve.
  Padlockable push-lock knob.
  Including pressure gauge.
  Additional ports for pressure gauges, pressure switches or for use as additional air take-off.




  View other Sprayshop® items and wood finishes.



  • Threaded port: 1/2"
  • Max inlet pressure: 13bar
  • Weight: 596g
  • Bowl capacity: 70cm³
  • Min/max temperature at 10bar: -10 to +50°C

View other Sprayshop® items and wood finishes.

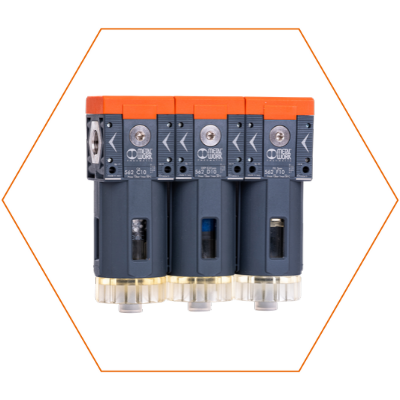

This custom made 3 piece air filter set by Syntesi® combines a filter, depurator and active carbon filter into a single unit.

Filter

• The filter catches liquid or solid impurities present in the compressed air. As they accumulate, they drop to the bottom of the filter and drain away, preventing them from reentering the airflow. The drainage automatically occurs when the pressure in the filter drops to zero. Alternatively the condensate can be drained manually.

Depurator

• The job of the depurator is to separate liquid and solid particles such as traces of oil dispersed in the compressed air with a high degree of efficiency. The air taken from here is not purified.

Active Carbon Filter

• Activated-carbon filtering systems achieve the highest standard of purification possible in industrial applications. They eliminate all traces of oils, solvents and hydrocarbons, and remove unpleasant odours. The activated carbon filtering element absorbs most of the polluting particles in the air due to minute holes in the granules of carbon.

View other Sprayshop® items and wood finishes.

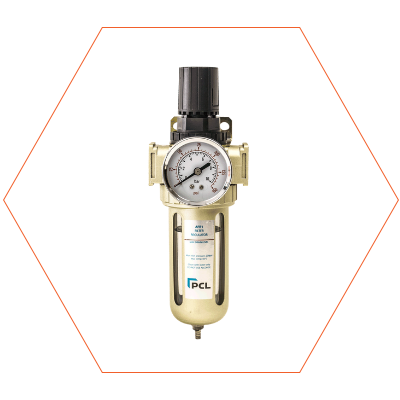

Basic filter regulator and gauge with water and oil trap. 1/2″ BSP female thread input and output.

Use this filter to control air pressure from the compressor close to the point of spray. Using this closer to the point of spray allows for more exact control over the air pressure compared to the flow from the compressor. As distance from the compressor increases, pressure can drop, so use of this regulator allows for more accurate control of air pressure.

View other Sprayshop® items and wood finishes.

• Fitting: 1/2" female BSP
• Maximum inlet pressure: 10bar
• Port size: 1/2"
• Filter: 40 micron
• Gauge: 0-150psi/ 0-10bar
• Maximum temperature: 60 °C
• Capacity of drain bowl: 55ml
• Capacity of oil bowl: 110 ml(1)

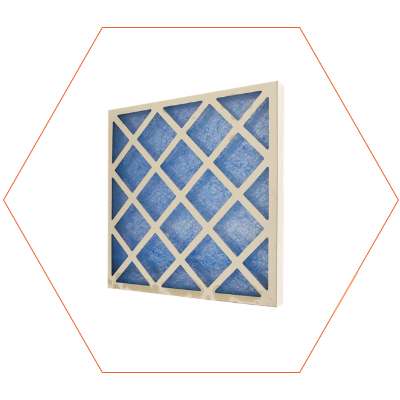

Lightweight glass fibre panel air filter for use on the air input side. Helps in achieving a cleaner air supply with reduced particulate content to prevent finishing problems.

View other Sprayshop® items and wood finishes.

• Length: 500mm
• Width: 500mm
• Depth: 50mm

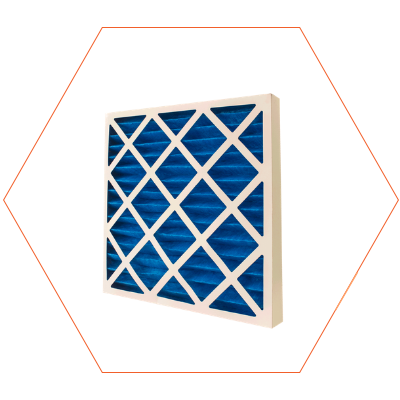

High performance, premium pleated air filters for the air inlet side of the booth. Pleated panel filters are more effective at removing particulate contaminants than glass fibre, which helps in achieving the perfect finish.

View other Sprayshop® items and wood finishes.

• Length: 500mm
• Width: 500mm
• Depth: 50mm

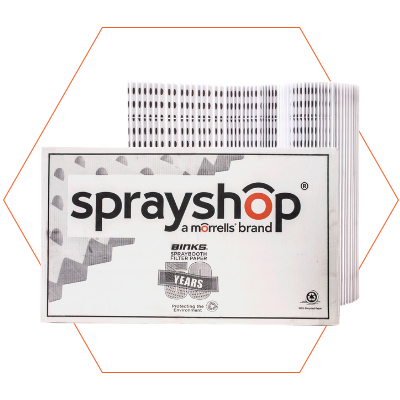

Air outlet filters for the spray booth with up to 98% filtration efficiency with stapled construction to give longer, superior working life. Expansion strapping ensures correct spacing of filter corrugations, with every eighth corrugation marked for easy cutting.

A flat packed design allows easy transport, while the design of the filter gives high paint loading with a low pressure drop.

View other Sprayshop® items and wood finishes.

• Dimensions: L custom, W 900mm, D 9mm

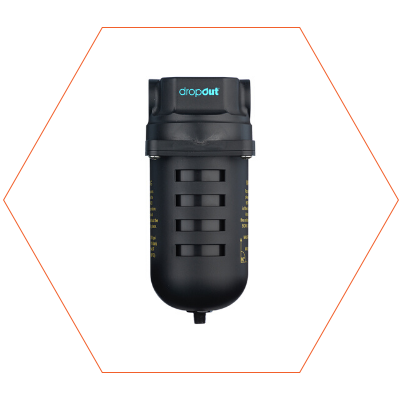

The Compact' Dropout® unit is used as an inline point of use liquid (water and oil) separator and contaminant remover.
Unlike traditional separators that are only efficient with constant and stable flows, Dropout® has the ability to maintain its performance levels during start up where it reaches optimum performance in a fraction of a second. This is also useful for pulsed flows.

This product  is easy to install. and once fitted, requires no replacement filters and has zero ongoing servicing costs, thanks to its built in auto drain.

View other Sprayshop® items and wood finishes.

• Inlet/Outlet connection : 1/2"
• Flow rate: 10cfm/ 283l/min
• Maximum pressure: 16bar/ 232 psi
• Operating pressure: 1-15bar/ 15-217psi
• Operating temperature: >0 - +60°C
• Maximum inlet temperature: 35°C
• Drain connection: 1/8"
• Water storage: 50cc
• Weight: 0.54kg
• Dimensions: 182.5mm x 88mm
• Material (housing): Nylon
• Material (internal): ABS

Syntesi® pressure regulator is based on the rolling diaphragm principle, which offers numerous advantages compared to systems using a flat diaphragm:

• Increased stroke, allowing wider valve aperture and hence greaterflow rate.
• Decreased dynamic and pick-up friction, and hence quicker response
  and enhanced sensitivity.

• Greater accuracy in maintaining the pressure setting, both with both variable flow rates and different supply pressures.

The regulator includes a compensation system that keeps the pressure setting virtually constant, even when the upstream pressure changes.
This is achieved mainly by the the pneumatically balanced valve.


If the downstream pressure rises above the threshold value, the air is discharged (relief valve) until it drops below the maximum value.
A special device relieves downstream pressure rapidly when the upstream pressure drops to zero. This means the regulator can be positioned between a valve and a cylinder because the air can flow in
both directions, towards the cylinder with regulated pressure, or return towards the valve during relief.






• Threaded port: 1/4"
• Max inlet pressure: 15bar
• Weight: 188g
• Min/max temperature at 10bar: -10 to +50°C

1/4" adapter for 1/8" pressure gauge.

Connecting nipple kit SY2

Filtering element 5μm for SY2

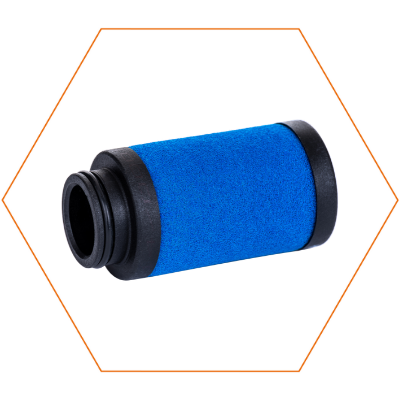

The Coalescing Element for the depurator section of the Breathing Air Filter Set, allowing for separation of liquid and solid particles from compressed air.

Cartridge active carbon filtering element for Breathing Air Filter Set that absorbs most of the polluting particles in the air flow due to minute holes in the granules of carbon.

Pressure Gauge (40mm x 40mm) for 1/8" 0-12 gauge

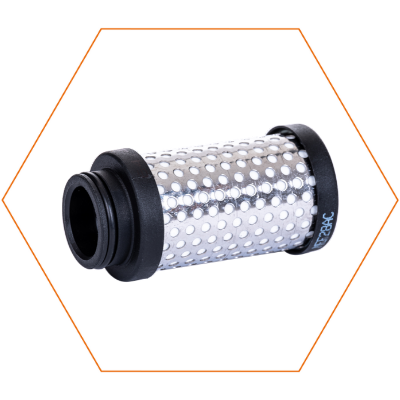

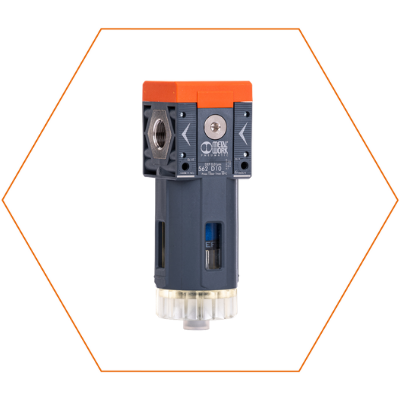

The job of the filter purifier is to efficiently separate liquid and solid particles dispersed in the compressed air.

This separation is achieved by means of a special filtering element calleda “coalescence cartridge”.

It is particularly indicated for eliminating traces of oil present in the
compressed air.

The air flow rate must remain below the maximum values
to achieve the desired degree of purification. Beyond this value, there may
be a decline in the quality of air from the purifier.

• Threaded port: 1/2"
• Max inlet pressure : 13bar
• Bowl capacity : 40cm³
• Weight : 456g
• Port for additional air take-off: 1/4"
